一、概述

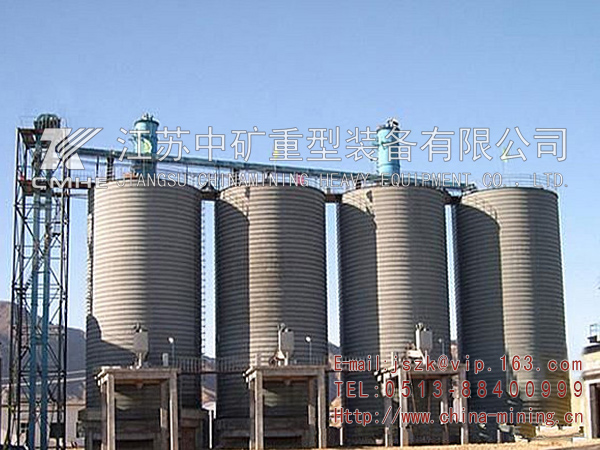

        水泥儲存庫是在庫底中心位置設一錐形混合室，以降低庫內的卸料壓力，消除漏斗流。混合室 設8~12個進料孔，在混合室和庫壁之間的環形區設有8~12個充氣區，卸料時輪流向相對的環形小 區充氣，使部分水泥流向中心混合室。在自上而下的流動過程中，切割水平料層而產生重力混合作 用，進入混合室后又因混合室內的連續充氣攪拌而進一步均化。這種庫的均化值可達5~9。電耗 0.15~0. 30kwh / t.
I .Brief introduction
        Cement storage silo has a cone mixing room in the center of bottom silo to reduce discharge pressure in silo and eliminate funnel flow. Mixing room is arranged 8 to 12 inlet holes. There is 8 to 12 aerating zones between mixing room and silo wall. Aerate small circular zone in turn when discharging. Make some cement flow toward central mixing room. Mix them with gravity because of cutting horizontal layer during flowing from up to down. Homogenize them again because of continuous aerating and mixing room. The homogenized valve can meet 5 to 9 and power consumption is 0.15 to 0.30KWh/t.

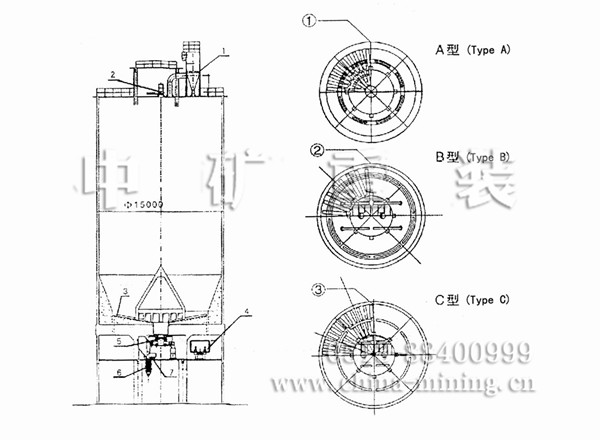

二、示意圖



Φ 12米儲存庫技術參數(Technical parameter of Φ12m storage silo)

序號(NO.)	名稱及規格Name & specification	數量(Qty.)	單位 Unit
1	氣箱式脈沖收塵器PPC32-4風機：9-26N08D Air case and pulse dust filter PPCS32-4 Fan:9-26 N0.8D	1	套 set
2	庫頂進料系統Inlet system of top silo	1	套 set
3	庫底、庫內充氣系統Aerating system of bottom silo and in silo	1	套 set
4	雙六咀空氣分配閥2-(|> 500 Double 6-spouts air distributor 2-0500	1	臺 set
5	庫底卸料閥系統Discharge valve system of bottom silo	2	套 set

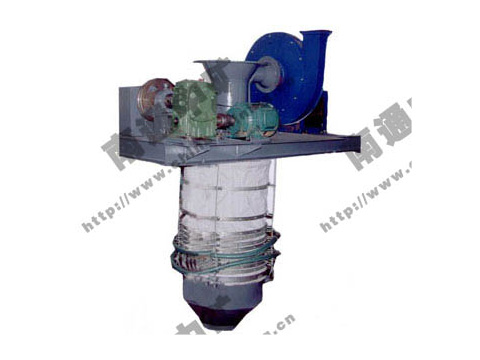

6	庫底散裝機ZSQ300/600 Bulk loader of bottom silo ZSQ300/600	1	臺 set
7	羅茨風機MJL200b風量：15.4m3/min風壓：68.4KPa功率：37KW Roots fan MJL200b Volume: 15.4m3/min Pressure:68.4KPa Power:37KW	1	臺 set
